2003 ShoreLand'r Utility ATV/UTV Trailer w/ Ramps

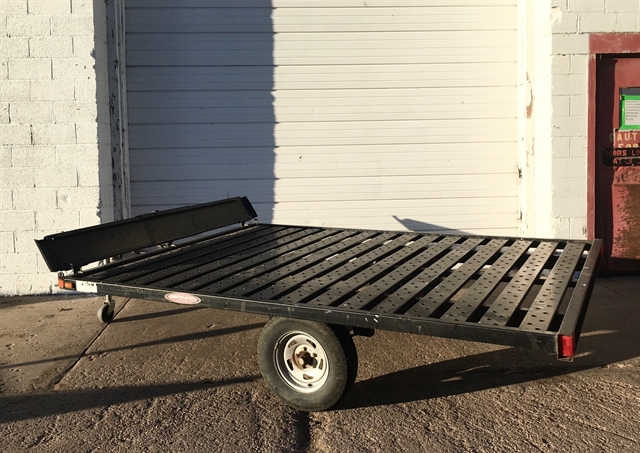

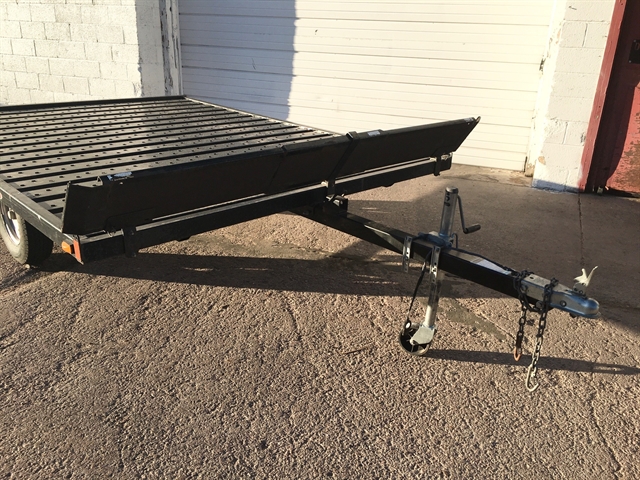

ShoreLand’r Utility ATV/UTV Trailer

ShoreLand’r Utility Trailers
Now you can get ShoreLand’r quality and dependability in a utility trailer. The heavy-duty, welded-steel construction and Diamond Black powder-coated finish ensure years of dependable performance. The drive-on Ramp Kit makes for easy loading and unloading.

2ATV
The 2,100-pound carrying capacity and big 90-inch x 124-inch deck are specifically designed for hauling two ATV's. Two removable ramps are stored neatly at the front of the trailer to shield your machines from road debris. They can be positioned almost anywhere around the trailer frame for convenient loading.

NOTE: Recommended carrying capacity is based on shipping weight of the trailer with standard equipment. Adding optional equipment may decrease the trailer's carrying capacity.

Manufacturer: ShoreLand'r

Model Year: 2003

Model: BLK2ATVA/-13

Model Code: 2ATVA

Color: Black

Dimensions:

Overall Length:  177 in.

Overall Width:  90 in.

Bed Size:  90 in. x 124 in.

Carrying Capacity:  2,100 lbs.

Operational Wheels:  Tire Size: ST185/80R13-CWheel Style: Standard

Additional Specifications:

• Ship Weight: 740 lbs.
• GAWR: 2,960 lbs.
• Frame Size: 2 in. x 4 in. x 12 ga.
• Frame Width: 90 in.
• Frame Height: 26 in.
• Tongue Tube Size: 3 in. x 3 in. x 10 ga.
• Tongue Length: 53 in.
• Coupler Size: 2 in. Class II
• Hub Size: 1-3/8 in. x 1-1/16 in.
• Bolt Pattern: 5 bolts on 4.5 in.
• Bearing Protectors: No
• Suspension Type: Leaf Spring
• Spring Length: 21.75 (hook)
• Number of Leaves: 5
• Brake Actuator Model: UFP Model A70
• Deck Material: Steel
• Ramps / Location: Removable (2)
• Sequence: 70
