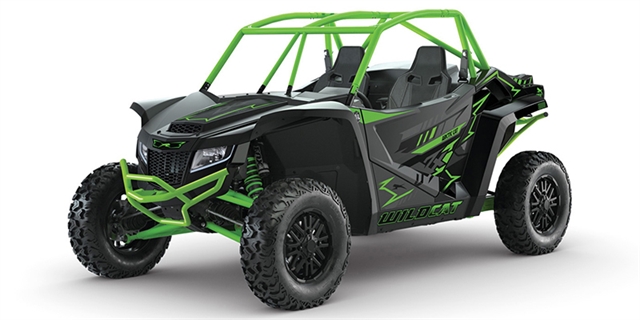

2023 Arctic Cat Wildcat XX LTD EPS

WILDCAT XX LTD

Stock #MPV-0329
Check Availability
Hi, my name is and I'm interested in this 2023 Arctic Cat Wildcat XX LTD EPS . I'm in the area and you can reach me at or by phone at

Wildcat XX LTD EPS

Step Above the Rest

How do you improve a ride that already gives you the adventures of a lifetime? You add front and rear bumpers and color match the ROPS and suspension. The Wildcat XX LTD comes with all of the same standard features you love on the Wildcat XX, making this side-by-side polished and ready to hit the trails.

  • Status:
    New
  • Vehicle:
    2023 Arctic Cat Wildcat XX LTD EPS
  • Model Number:
    U2023RKX1PCAO
  • Color:
    Black / Medium Green
  • Stock Number:
    MPV-0329
  • Location:
    Harsh Outdoors, Eaton, CO 80615
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    3

ENGINE

  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (cc):
    998
  • Displacement (ci):
    60.9
  • Engine Brand Name:
    Yamaha
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    In-Line
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    130
  • Horsepower (kW):
    97
  • Starter:
    Electric
  • Valve Configuration:
    DOHC

EXTERIOR

  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Door Material:
    Hard
  • Engine Case Guard:
    Yes
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    136
  • Bed Capacity (lbs.):
    300
  • Bed Height (in):
    9
  • Bed Height (mm):
    229
  • Bed Length (in):
    34
  • Bed Length (mm):
    864
  • Bed Width (in):
    32
  • Bed Width (mm):
    813
  • Cargo Bed Material:
    Polyethylene
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Adjustment Type:
    Shock Mounted Adjustment
  • Air Adjustable:
    Yes
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Front Suspension Brand Name:
    Fox® Podium
  • Front Suspension Type:
    Double A-Arm
  • Front Travel (in):
    18
  • Front Travel (mm):
    457
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Brand Name:
    Fox® Podium
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent
  • Rear Travel (in):
    18
  • Rear Travel (mm):
    457

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    823.7
  • Dry Weight (lbs):
    1816
  • Engine Displacement to Weight (cc):
    0.55
  • Fuel Capacity (gal):
    10
  • Fuel Capacity (l):
    37.9
  • Ground Clearance (in):
    15
  • Ground Clearance (mm):
    381
  • Height (in):
    67.5
  • Height (mm):
    1715
  • Length (ft):
    11.33
  • Length (ft/ft):
    11
  • Length (ft/in):
    4
  • Length (in):
    136
  • Length (mm):
    3454
  • Payload Capacity (kgs):
    331
  • Payload Capacity (lbs):
    730
  • Wheelbase (in):
    95
  • Wheelbase (mm):
    2413
  • Width (in):
    64
  • Width (mm):
    1626

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    CST® Behemoth AT 30 X 10-15
  • Front Tire Diameter (in):
    30
  • Front Tire Width:
    10
  • Front Wheel Diameter:
    15
  • Rear Tire (Full Spec):
    CST® Behemoth AT 30 X 10-15
  • Rear Tire Diameter (in):
    30
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    15
  • Tire Brand:
    CST®
  • Tread Type:
    All Terrain
  • Wheels Composition:
    Aluminum
